SP 5322 B Wind-up speaker stand with automatic lock pin mechanism

Item No.: GSP5322B
Wind-up mechanism with retractable crank for easy raising and lowering
Lock pin mechanism with push-button to prevent uncontrolled movements
Locking screw for additional safety
Pressed-in M10 thread for use as a light stand

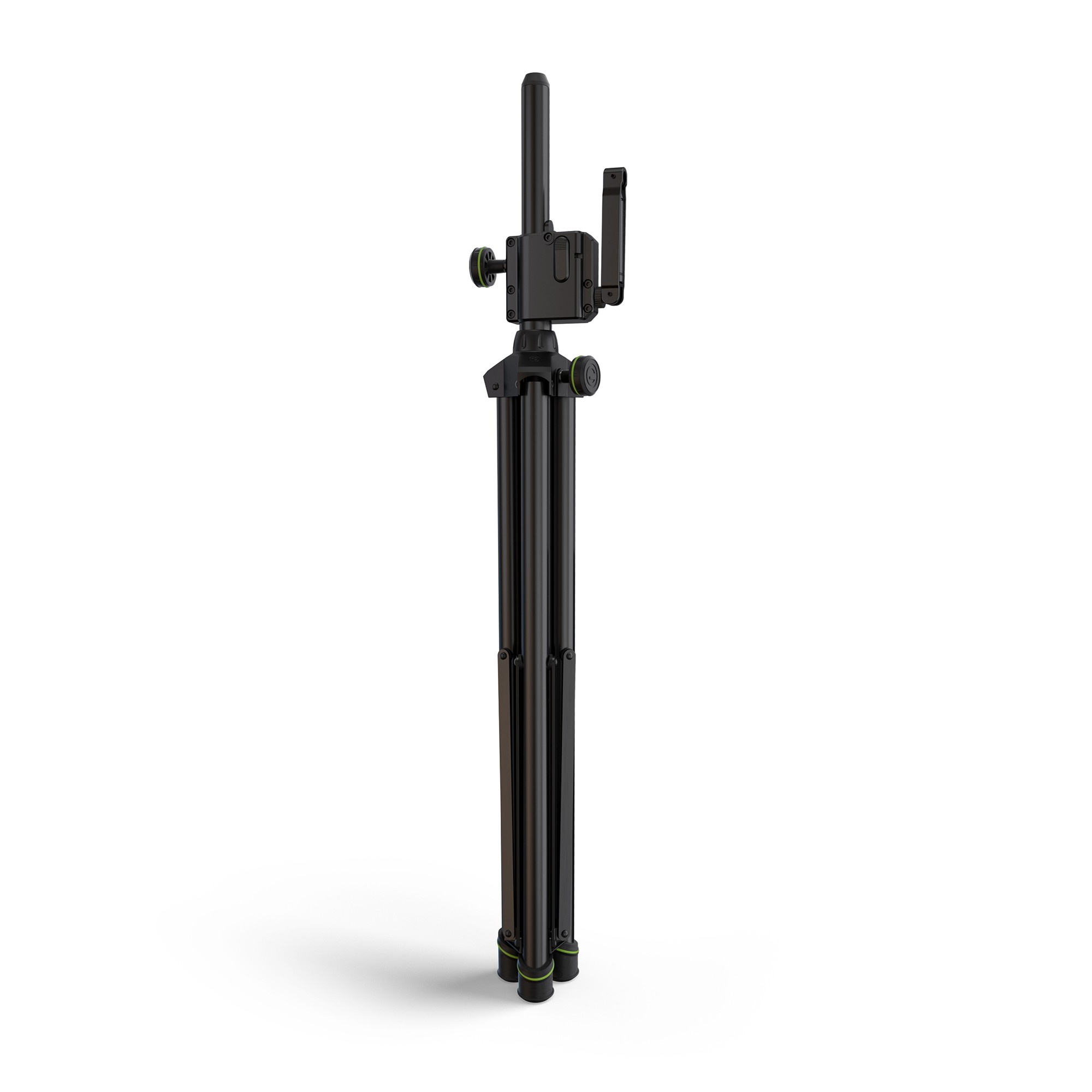

Folding tripod construction with double struts

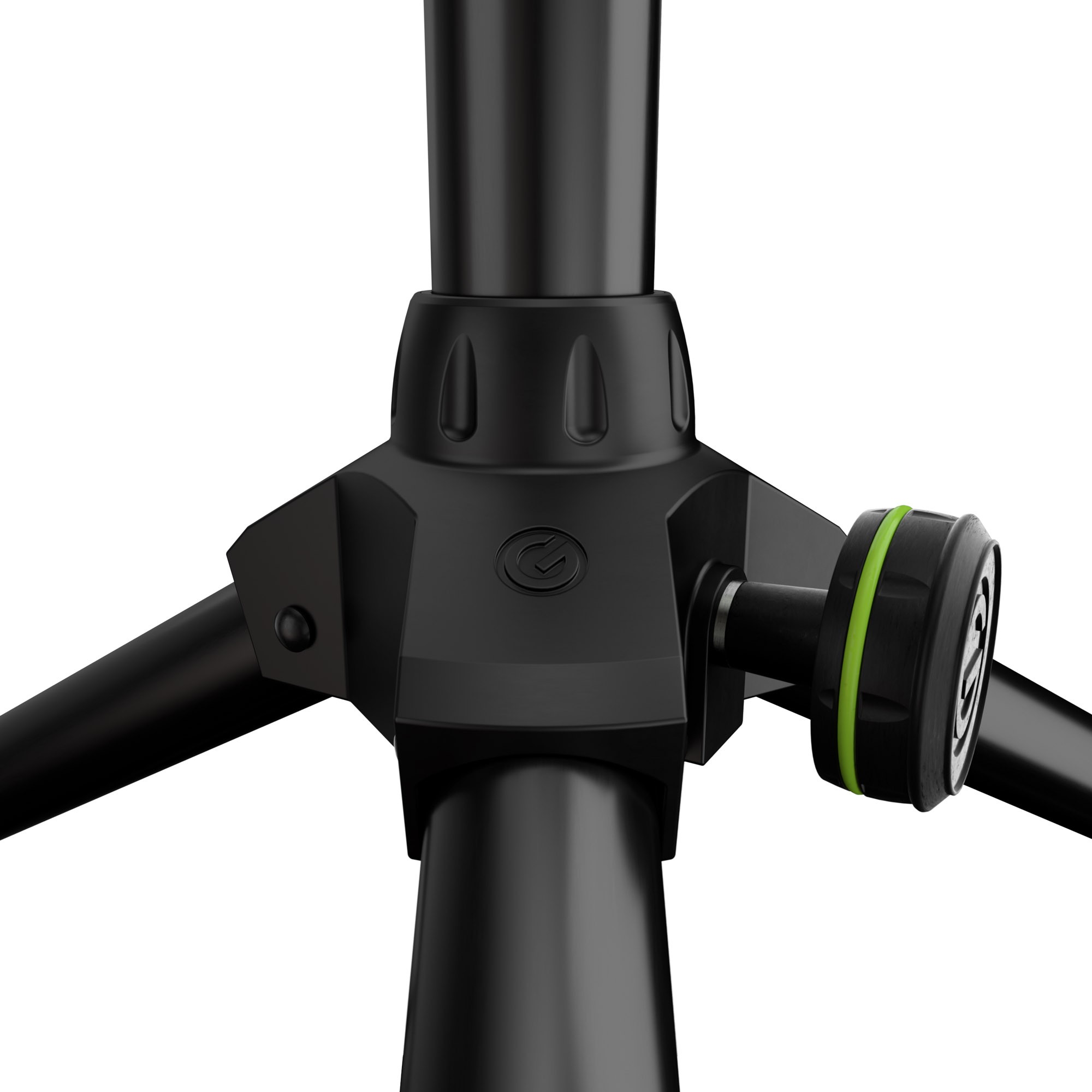

Durable foot suspension made of cast zinc
60 kg load capacity
Height-adjustable from 1,330 mm to 2,100 mm


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Wind-up mechanism with retractable crank for easy raising and lowering
Lock pin mechanism with push-button to prevent uncontrolled movements
Locking screw for additional safety
Pressed-in M10 thread for use as a light stand
Folding tripod construction with double struts
Durable foot suspension made of cast zinc
60 kg load capacity
Height-adjustable from 1,330 mm to 2,100 mm
Description

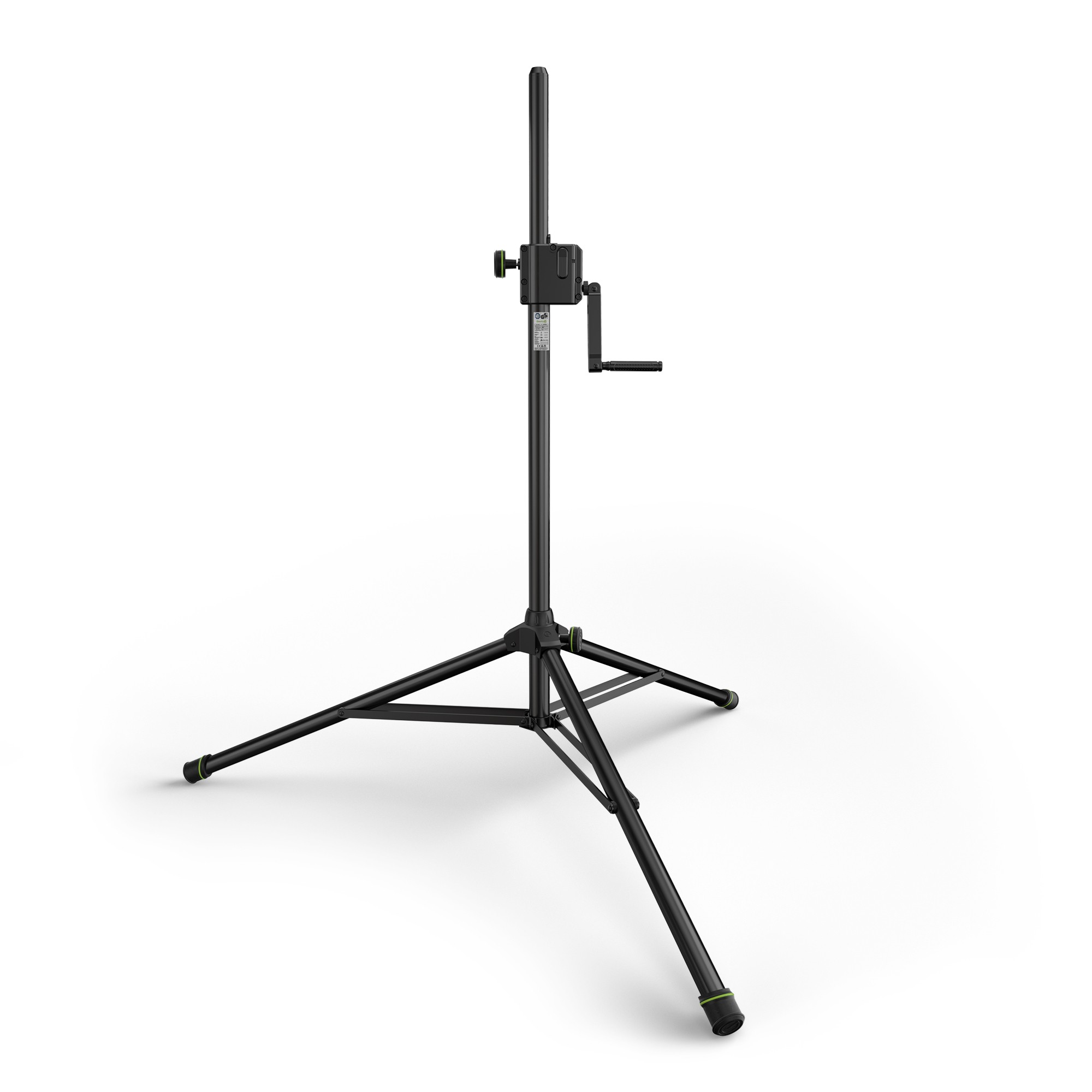

The Gravity® SP 5322 B is a robust speaker stand with a convenient hand crank mechanism for professional audio and lighting applications. Crafted from durable steel, its stout construction is evident in every detail. The tripod base, reinforced with double bracing, is anchored by a sturdy cast zinc sleeve, ensuring stability under heavy loads. Versatility is key, with an integrated M10 thread pressed into the 35-mm-diameter extension tube which allows seamless conversion to a lighting stand.

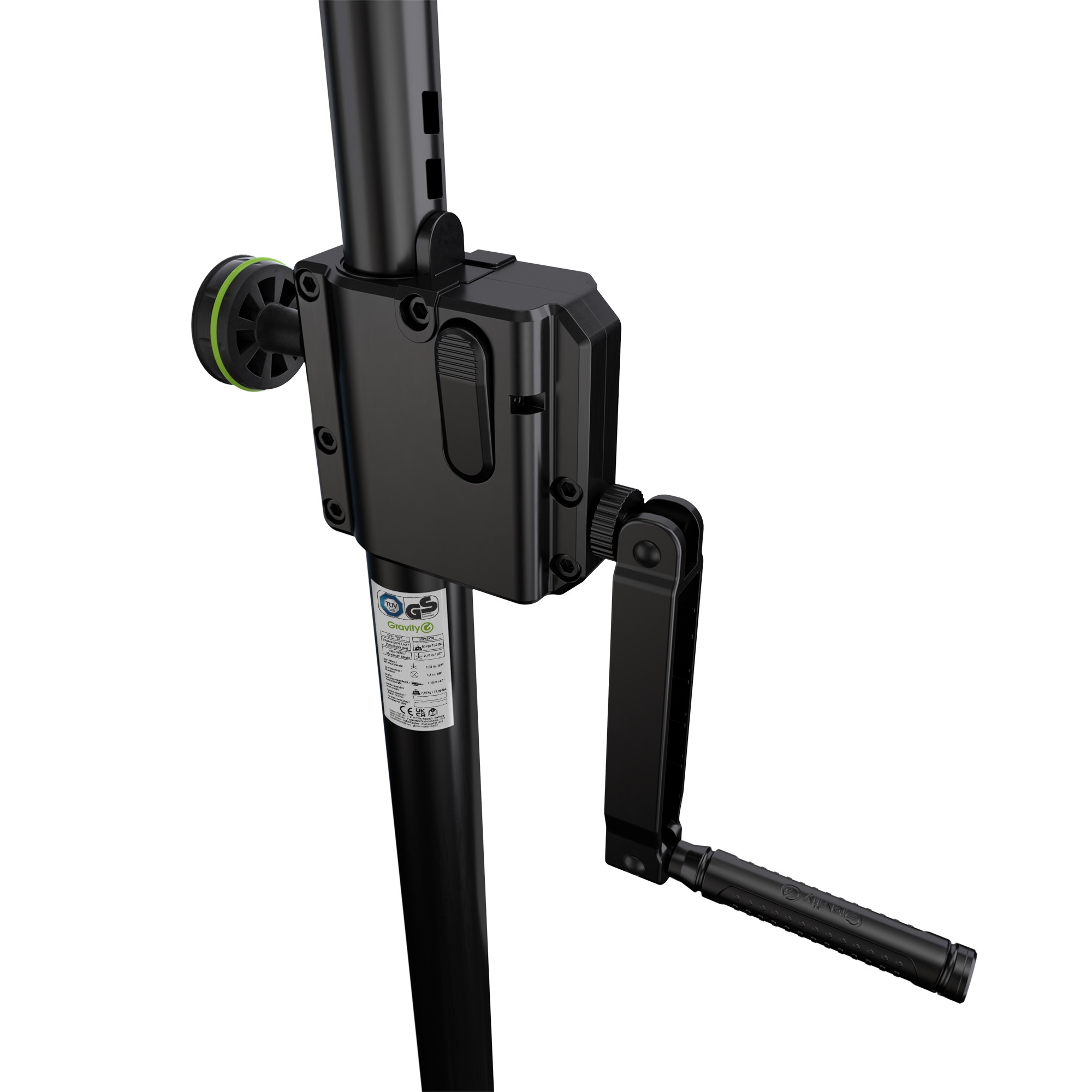

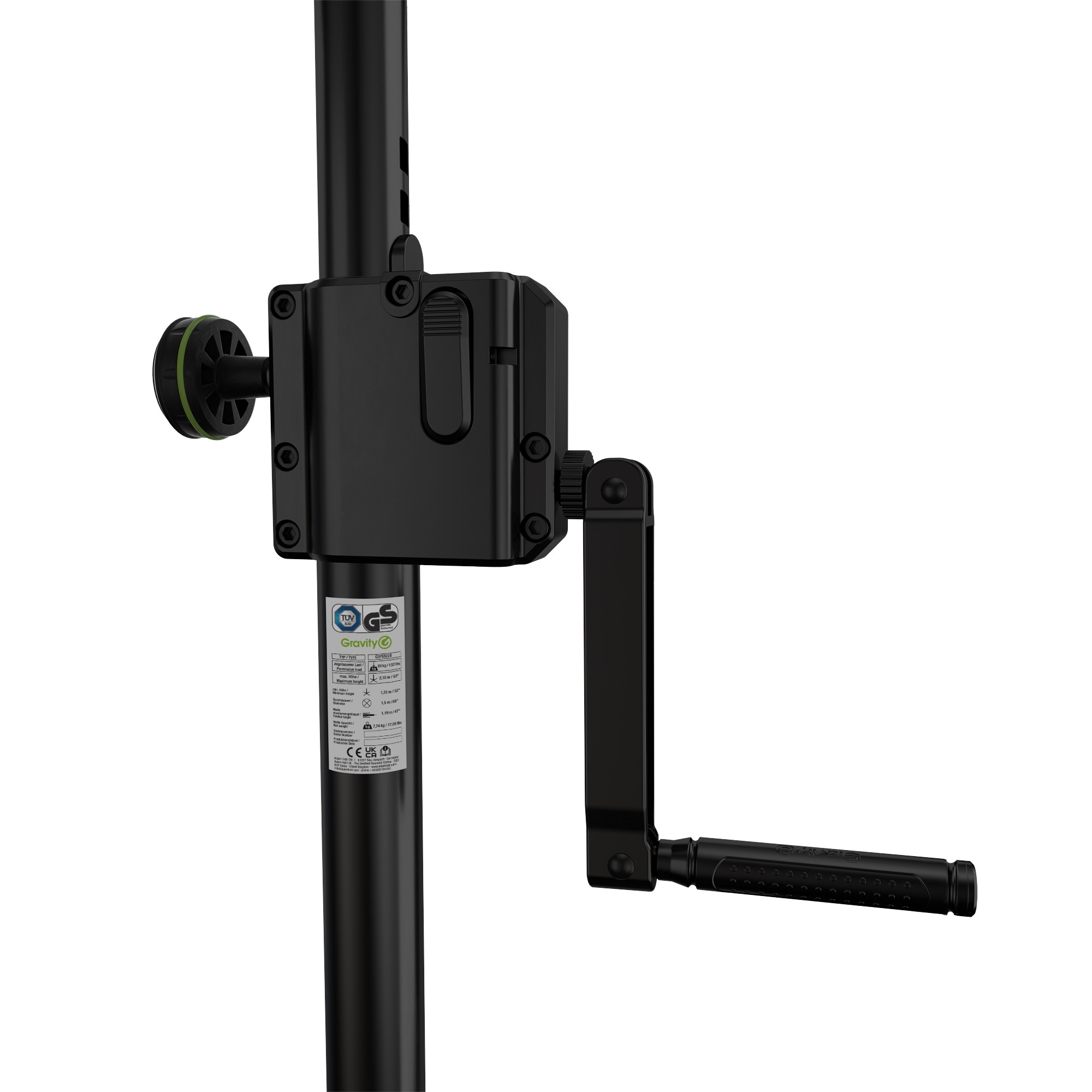

What sets this stand apart is its convenient hand crank mechanism, which facilitates effortless adjustment of speakers or lighting trusses. The retractable crank handle not only ensures smooth operation, but also contributes to a sleek, clutter-free design.

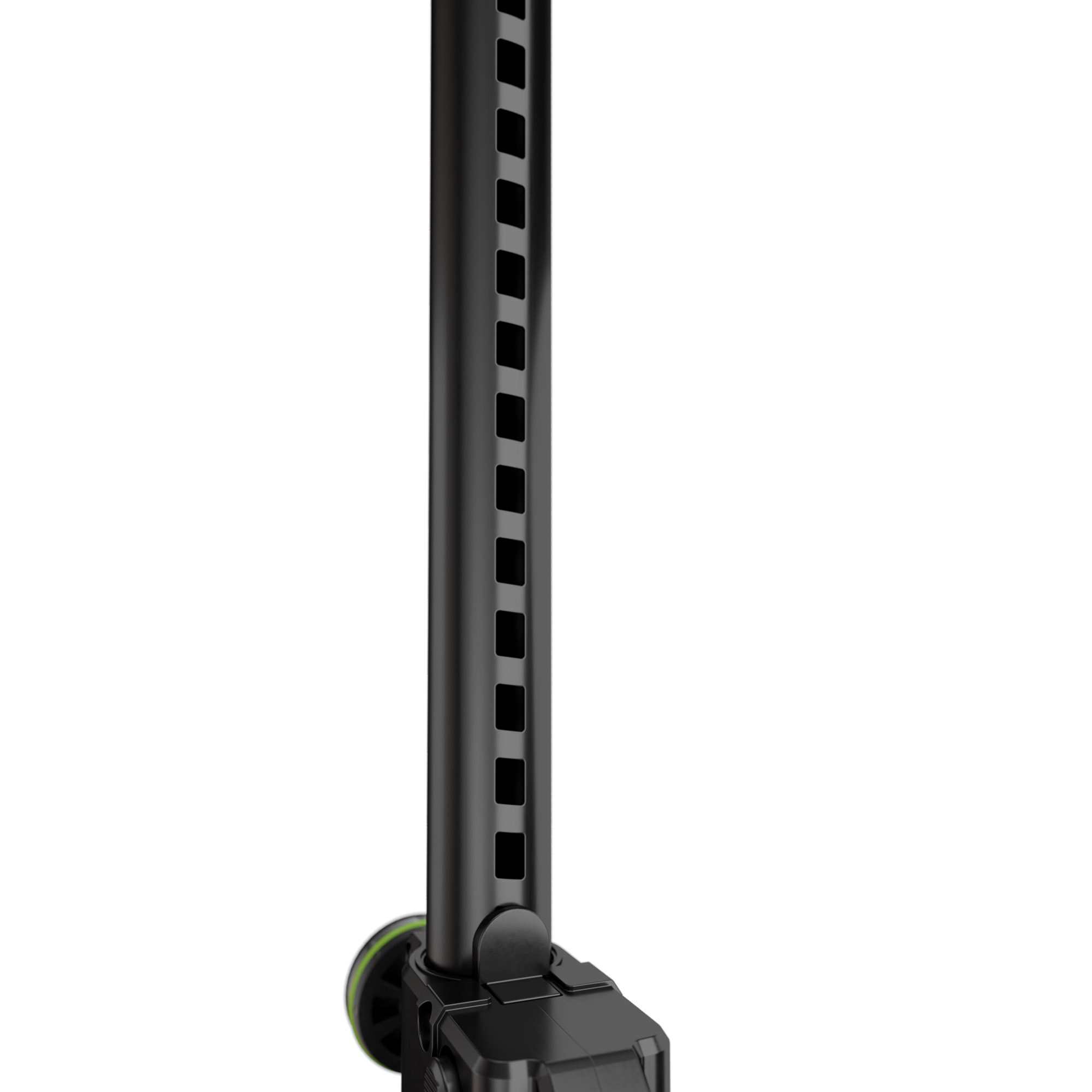

Safety is paramount: the innovative lock pin mechanism is equipped with a convenient push-button feature to prevent any unintended movement of the extension tube. For added peace of mind, a locking screw further enhances stability and security.

Capable of supporting up to 60 kg and offering adjustable height ranging from 1,330 mm to 2,100 mm, the Gravity® SP 5322 B is tailored for professional-grade applications.

Specifications
General
Height adjustment
Crank with push button and locking screw
Height adjustment range
1,330 - 2,100 mm
Mounting
35 mm, M10
Maximum load
60 kg
Material
Plastic, Steel, Zinc alloy
Coating
Powder coated
Colour
Black
Base/foot
Type
Tripod
Material
Steel, Zinc alloy
Coating
Powder coated
Colour
Black
Footprint (Ø)
1,500 mm
Gravity® rings
Number of Gravity® rings
5 x 30 mm
Black ring set included
Yes
Transport dimensions
Width
160 mm
Height
1,190 mm
Depth
170 mm
Dimensions & weight
Width
160 - 1,600 mm
Height
1,330 - 2,100 mm
Depth
170 - 1,600 mm
Weight
7.74 kg
